The flow coefficient CV is a key factor in selecting and maintaining industrial valves. It helps determine how much fluid a valve can pass under specific conditions, ensuring your system operates efficiently and reliably. Let’s break down what the CV flow factor is, why it matters, and how to use it effectively.
What Is the Flow Coefficient CV?
The flow coefficient CV measures the flow capacity of a valve. Specifically, it tells you how many gallons per minute (GPM) of fluid can pass through a valve with a one-pound pressure drop. Simply put, a higher CV value means a valve can handle more flow, while a lower CV provides more precise control over flow rates.
The valve flow coefficient is critical for selecting the right valve for your system—whether you’re managing liquids, gases, or steam.
Flow efficient CV is important because it contributes to:
- Efficient Operation: Ensures the system doesn’t overwork by using a properly sized valve.
- Energy Savings: Reduces energy waste by avoiding unnecessary pressure drops.
- Equipment Protection: Prevents issues like cavitation or overloading that can damage the system.
- Cost Savings: Minimizes maintenance costs and downtime with the correct valve size.

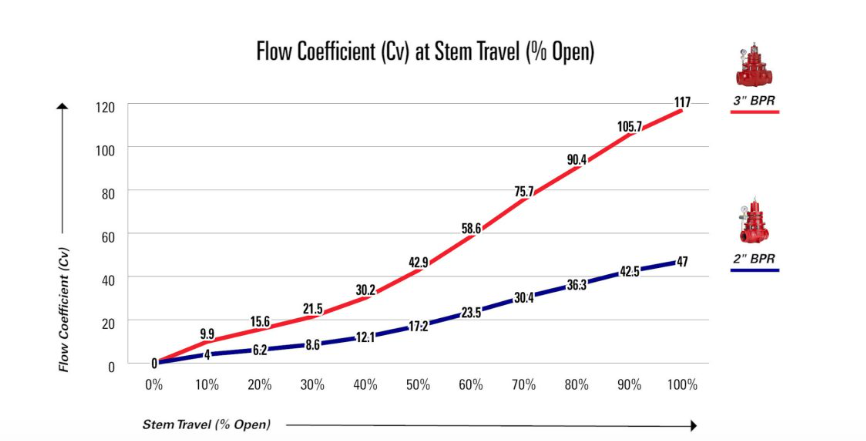

How Is the Flow Coefficient CV Calculated?
To calculate the CV, use the formula:
CV = Q × √(∆P / SG)
Where:
- Q = Flow rate in GPM
- ∆P = Pressure drop across the valve (psi)
- SG = Specific gravity of the fluid
For example, if your system handles water at a flow rate of 50 GPM with a pressure drop of 4 psi, the CV would be:
CV = 50 × √(4 / 1) = 100
You can also use a valve CV calculator provided by manufacturers for quick and accurate results.
Factors Affecting CV Flow Factor
Several factors influence the CV value of a valve, including:
- Type of Fluid: Gases, liquids, and steam have different flow characteristics, impacting the CV. For instance, denser fluids generally require a higher CV value.
- Temperature: Higher temperatures can alter fluid viscosity and density, affecting the CV calculation. For example, steam flow often requires specialized consideration due to its unique properties.
- Valve Design: Different valve types—such as ball, gate, or globe valves—have varying CV values. The internal design and material also influence the flow capacity and durability of the valve.
- System Pressure: Systems operating at higher pressures might experience more significant pressure drops, altering the CV requirements.
How to Select the Right CV Valve
To choose the right CV valve, follow these steps:
- Identify Your System Needs: Understand your system’s flow requirements, including the type of fluid, operating conditions, and pressure range. Consider both normal and peak operating conditions.
- Use Manufacturer Charts: Many manufacturers provide CV charts to help you match the correct valve to your system’s needs. These charts simplify the selection process by accounting for variables like pressure drop and flow rate.
- Consult Experts: Collaborating with valve specialists can ensure you select the best CV valve for your unique application. Professionals can also provide insights into long-term performance and maintenance considerations.
- Test and Verify: In some cases, it’s beneficial to test a valve in simulated conditions to confirm it meets the desired specifications.
Common Applications of CV Circulation in Industry
CV circulation is crucial in various industries, including:
- Oil and Gas: Ensures safe and efficient transport of liquids and gases under high-pressure conditions.
- Water Treatment: Regulates flow in filtration and distribution systems.
- Chemical Processing: Maintains precise control over reactive or hazardous fluids.
- HVAC Systems: Optimizes airflow and temperature control in heating and cooling systems.
- Power Generation: Ensures efficient steam flow in turbines and boilers.
Flow Efficient CV: Final Thoughts
Understanding the flow coefficient CV is essential for selecting and maintaining efficient industrial valve systems. By considering the CV flow factor during valve selection, you can enhance system performance, reduce energy consumption, and increase longevity.
Need help finding the right CV valve for your system? Contact us at GOWIN Industrial Valve for expert guidance today!
Flow Efficient CV: FAQ
Is a higher or lower CV better for flow?
A higher CV is better for maximizing flow through the valve, while a lower CV provides more control over flow in precision applications. The best CV depends on your system’s requirements, including flow rate, pressure drop, and fluid type.
Can the CV flow factor change over time?
Yes, factors like wear, corrosion, or changes in operating conditions can impact the CV value. Regular maintenance can mitigate these effects.
Do all valve types have the same CV value?
No, different valve designs, like ball or globe valves, have varying CV values due to their unique construction. Always consult the manufacturer for specifics.
Can I use a single valve for different fluids?
It depends on the system’s requirements. Some valves are versatile, but others are optimized for specific fluid types. Ensure compatibility before use.
