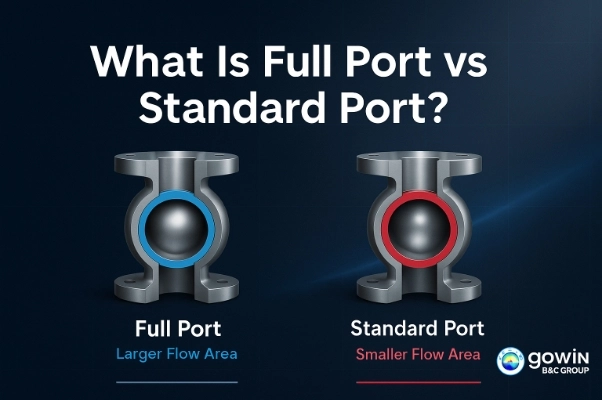

Full port vs standard port describes ball valve bore configurations. Full port means the valve bore matches the pipe’s internal diameter, allowing unrestricted flow. Standard port means the bore is one size smaller than the pipe, creating a restriction. The main differences between them are flow capacity, pressure drop, cost, and size.
Full Port vs Standard Port: Quick Comparison
These design differences create distinct performance characteristics that determine which valve type suits your application.
| Feature | Full Port | Standard Port |
| Bore Size | Matches pipe diameter | One pipe size smaller than pipe |
| Flow Capacity | Maximum, unrestricted | Reduced due to smaller bore |
| Pressure Drop | Minimal to none | Higher due to restriction |
| Cost | More expensive | More economical |
| Size/Weight | Larger and heavier | Smaller and lighter |
| Installation Space | Requires more room | Fits compact spaces |
| Applications | High-flow, viscous fluids | General purpose, low-flow |
| Maintenance | Less frequent | May need more frequent |
| Materials | Heavy-duty (stainless steel, brass) | Various options, lighter materials |
Bore Size
The bore size defines the fundamental difference between these valve types. A full port ball valve has an internal opening that matches the connected pipe’s internal diameter exactly. When you look through a fully open valve, you see a straight, unobstructed path the same size as your pipe.
A standard port ball valve has a bore diameter one pipe size smaller than the connecting pipes. For example, a 2-inch standard port valve has a 1.5-inch bore. This creates a bottleneck in the flow path.
Flow Capacity
Flow capacity determines how much fluid or gas can move through the valve per unit of time. Full port ball valves deliver maximum flow capacity because nothing restricts the flow path.
Standard port ball valves reduce flow capacity because the smaller bore creates a restriction. The exact reduction ranges from 10-30% compared to full port designs, depending on the bore size relative to pipe size.
High-flow applications like main pipeline isolation need the maximum capacity that full port provides. Moderate flow applications can work with the reduced capacity of standard port.
Pressure Drop
Pressure drop measures the pressure loss as fluid passes through the valve. Full port ball valves create minimal to zero pressure drop when fully open. The unrestricted path means the fluid maintains its velocity and pressure.
Standard port ball valves cause measurable pressure drop even when fully open. The fluid accelerates entering the smaller bore, then decelerates exiting. This velocity change creates turbulence and pressure loss.
Systems where maintaining pressure is critical need full port designs. Low-pressure systems or short pipe runs can tolerate the pressure drop from standard port valves.
Cost
Cost differences stem from material usage and manufacturing complexity. The ball valve full port vs standard port pricing shows full port valves cost 20-40% more than standard port equivalents.
Full port valves require larger valve bodies, bigger balls, and more material overall. Standard port valves use less material in a more compact design, reducing manufacturing costs.
Projects installing dozens or hundreds of valves see significant total cost differences. Budget-conscious projects choose standard port valves when the performance trade-offs work for their application.
Size and Weight
Physical dimensions affect installation planning and structural support requirements. Full port ball valves are larger and heavier because they accommodate the full-bore flow path.
Standard port valves are more compact and lighter. The smaller bore allows a smaller valve body. This makes them easier to handle during installation and suitable for tight spaces.
Limited installation space in skid-mounted systems or retrofit projects often makes standard port valves the practical choice.
Turbulence and Flow Behavior
Turbulence creates noise, vibration, and component wear beyond simple pressure loss. The standard port vs full port ball valve comparison shows full port designs create smooth flow with minimal turbulence.
Standard port valves create turbulence as fluid velocity changes entering and exiting the restriction. This turbulence causes increased noise, vibration, potential cavitation in liquid systems, and accelerated wear on valve components.
Systems handling clean, low-viscosity fluids tolerate turbulence better than systems with particulates or high-viscosity fluids.
Applications
Full port valves work best in high-flow systems. Oil and gas pipelines, chemical processing with viscous fluids, water treatment plants, and pigging operations need unrestricted flow. High-pressure systems can’t tolerate the additional stress from restrictions.
Standard port valves suit moderate-flow applications where cost matters. HVAC systems, residential plumbing, and infrequent-cycling isolation valves don’t need maximum flow capacity. Budget-sensitive projects accept minor flow reduction for lower capital costs.
Maintenance Requirements
Full port valves experience less wear because particles flow through without hitting restrictions. Standard port valves concentrate wear at the restriction point where debris settles.
Clean fluid systems show minimal maintenance differences. Slurry systems and mining applications favor full port for reduced maintenance.
Materials and Construction
Both types use the same materials: stainless steel, brass, carbon steel, and specialized alloys. Full port valves simply use more material for the larger body and ball, increasing weight and cost.
- Nominal diameter: 2″-60″ DN50-DN1500
- Pressure: 150LB-2500LB 2.5Mpa-42.0Mpa
- End Connection: RF, RTJ, BW, THR, SW
- Temperature: -196℃–650℃
Choosing the Right Valve for Your System
The full port vs standard port decision balances performance against cost and space constraints. Full port delivers maximum flow and minimum pressure drop. Standard port reduces initial investment and fits tighter spaces.
Your system conditions determine the right choice. High-flow pipelines and pressure-sensitive systems need full port for unrestricted flow. General isolation valves and moderate-flow applications work with standard port when budget or space is limited.
GOWIN supplies both full port and standard port ball valves across our industrial valve line. Visit our website to review specifications, or contact our team to discuss your specific application requirements.
Frequently Asked Questions
What does “full bore” mean?
Full bore is another term for full port. Both mean the valve’s internal diameter matches the pipe diameter. The terms are used interchangeably in the valve industry.
Can I use a standard port valve in a high-pressure system?
Yes, as long as the pressure rating is adequate for your system. However, the restriction creates higher velocities and turbulence that can cause problems. Check whether the pressure drop is acceptable before choosing standard port for high-pressure applications.
Do full port valves cost more to operate?
No, full port valves don’t increase operating costs despite their higher purchase price. The lower pressure drop can actually reduce pumping energy in some systems, offsetting the initial investment over time.
Are gate valves available in standard and full port?
Gate valves are full port by design because the gate lifts completely out of the flow path. You won’t typically find reduced port gate valves since it would defeat the purpose of the gate valve design.
