Among the various gate valve types, wedge and slab gate valves are prominent due to their unique structures and operational characteristics.
When choosing between wedge and slab gate valves, it’s essential to understand their distinct designs, functionalities, and applications.
This article delves into the differences between these two gate valve types, providing insights to help you make informed decisions for your specific needs.

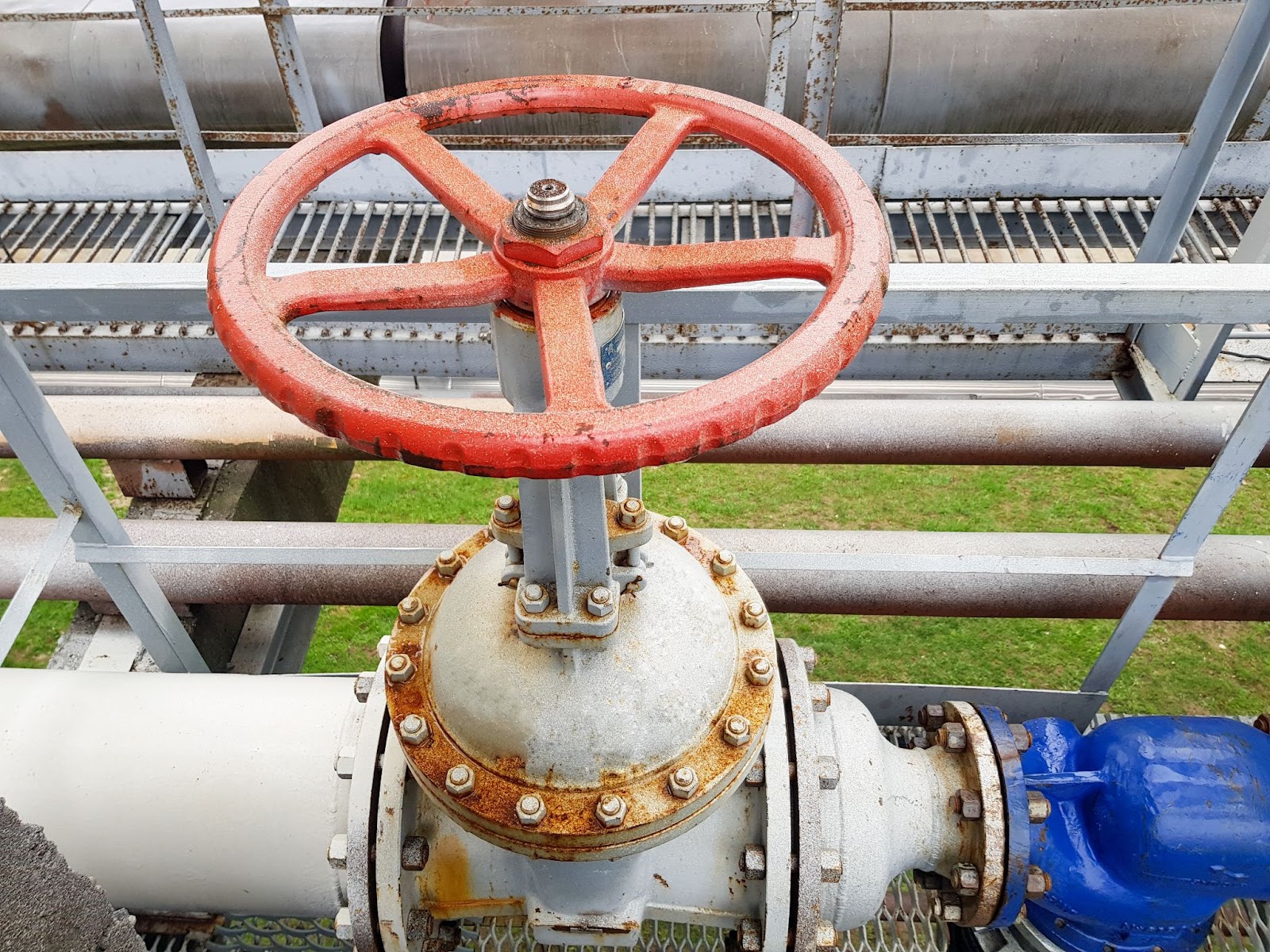

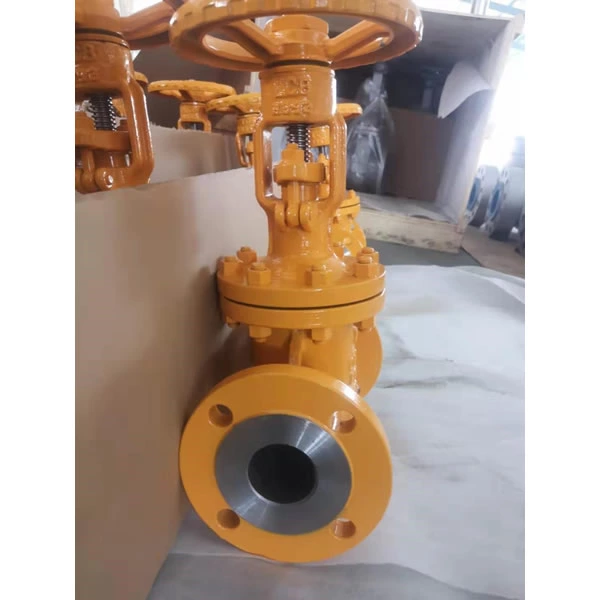

What are Wedge Gate Valves?
Wedge gate valves utilize a tapered gate that presses firmly between angled seats, forming a reliable seal once fully shut.
The wedge in valve applications provides a metal-to-metal seal, making it suitable for high-pressure and high-temperature environments.
However, the design may lead to potential issues like thermal binding, where temperature fluctuations cause the gate to stick.
What are Slab Gate Valves?
Slab gate valves, also known as through-conduit gate valves, consist of a single gate unit that moves between two seat rings.
Its structure promotes smooth flow with low resistance, making it especially suitable for media containing solid particles or debris.
The slab gate valve’s structure ensures that the sealing surfaces are less affected by thermal deformation, reducing the risk of leakage.
Comparative Analysis: Wedge Gate Valves vs Slab Gate Valves
Understanding the differences between wedge and slab gate valves is crucial for selecting the appropriate valve for your application.
| Factor | Wedge Gate Valves | Slab Gate Valves |
|---|---|---|
| Sealing Mechanism | Relies on a wedge-shaped gate pressing against the seats to form a mechanical seal. Effective but prone to thermal binding under fluctuating temperatures. | Features a floating gate between seat rings that self-adjusts, maintaining a reliable seal even during thermal expansion. |
| Flow Characteristics | May introduce higher flow resistance due to gate shape partially obstructing the path. | Provides straight-through, low-resistance flow—ideal for pigging and particulate-heavy media. |
| Maintenance & Durability | More maintenance may be needed over time due to potential thermal binding and surface wear. | Lower maintenance demands with a design that minimizes wear and tolerates temperature shifts. |
| Applications |
|
|
Material Selection: A Critical Factor in Valve Performance
Material compatibility plays a crucial role in the long-term success of gate valve applications.
Both wedge and slab gate valves must be made from materials that can withstand harsh conditions, whether it’s exposure to corrosive chemicals or high-pressure environments.
Slab gate valves are commonly manufactured using stainless or carbon steel to handle abrasive and dense media, while wedge gate valves may utilize alloy steels or receive protective coatings for added durability.
Choosing the right material reduces wear, extends valve life, and prevents unexpected breakdowns.
Gowin offers a full range of material options for its gate valve line, helping industries find the ideal match for challenging environments in oil, gas, power, and metallurgy.
Compliance with Global Standards and Certifications
Adhering to international valve standards is essential, especially when valves are used in safety-critical systems.
Wedge gate valves are typically manufactured in compliance with API 600, while slab gate valves follow API 6D guidelines.
These certifications ensure consistent design, pressure tolerance, and quality assurance, helping end-users avoid performance issues in high-demand settings.
Gowin manufactures gate valves that conform to globally recognized benchmarks, including API, ASME, and ISO certifications.
Whether the application requires a basic valve gate wedge or a complex slab gate valve for a pipeline, users can count on certified products that align with regulatory and performance expectations.

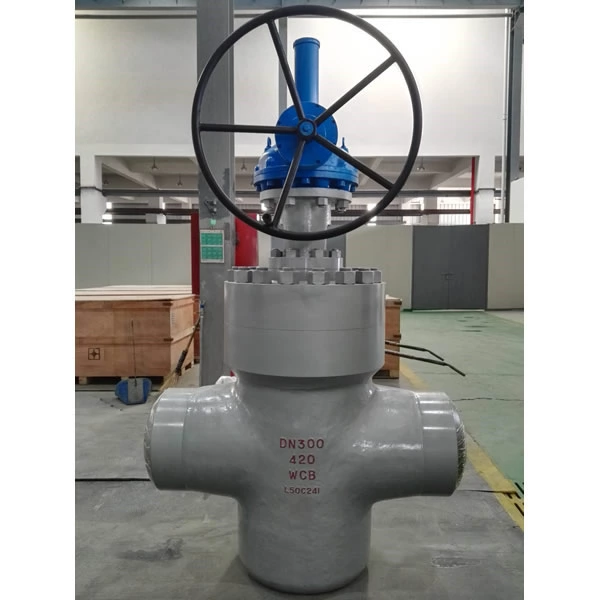

Gowin’s Comprehensive Gate Valve Solutions
Gowin offers an extensive range of gate valves, including both wedge and slab types, catering to diverse industrial needs.
Their products are designed to meet the rigorous demands of industries such as oil and gas, power generation, and metallurgy.
With a focus on quality and reliability, Gowin ensures that clients receive valves that perform optimally under various operational conditions.
Final Thoughts: Wedge Gate Valves vs Slab Gate Valves
Selecting between wedge and slab gate valves depends on specific operational requirements, including pressure, temperature, and the nature of the fluid being transported.
Understanding the distinct features and applications of each valve type enables informed decision-making, ensuring efficiency and reliability in your systems.
With Gowin’s comprehensive gate valve offerings, you can find the perfect solution tailored to your industrial needs.
